Companion Chip Demo

Xylon has built a demo system to showcase the versatility of the logiCRAFT-CC Platform and Xilinx® FPGAs. The demo demonstrates 3 different companion chip architectures used in interfacings with  three classes of host chipsets: the Intel® Atom™, TI's OMAP™ (based on the ARM® Cortex™-A8) and NEC V850 host processors.

The described demo system is developed around the logiCRAFT-CC platform for demonstration purposes and can not be purchased from Xylon.
The demonstrated applications can be run on specific logiCRAFT-CC kits.



Click Picture To Enlarge!

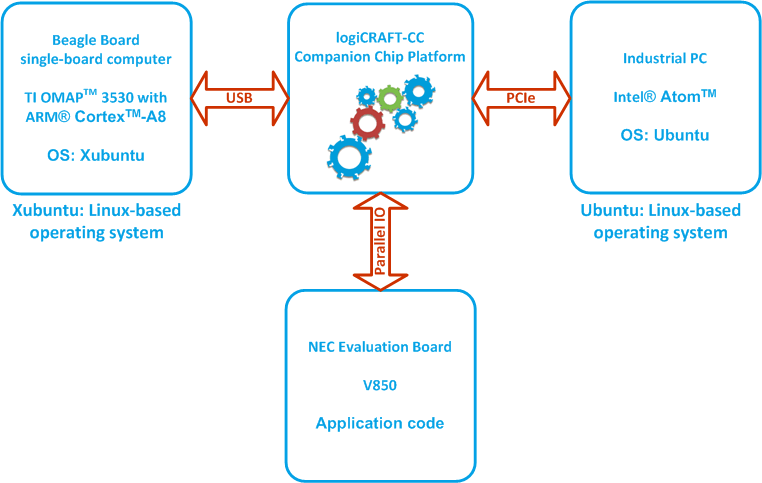

Block Diagram - Companion Chips Demo Combinations

Check out logiCRAFT-CC demo video clips!

The logiCRAFT-CC demo system uses reference FPGA designs for the PCI Express® and USB connectivity, which are provided as parts of the logiCRAFT-CC Companion Chip Platform kits. The FPGA design for interfacing with the NEC CPU is not included in the kit.

Click Picture To Enlarge!
logicBRICKS-CC Companion Chip Demo

Check out logiCRAFT-CC demo video clips!

In addition to the FPGA reference designs, provided Linux applicative software and software drivers supports the following companion chip functions:

- PCIe® connected video frame grabber for camera
- USB connected video frame grabber for camera
- SD Card Host control including support for high capacity SDHC cards
- I2S audio control
- additional UARTs and I2C controllers


Click Picture To Enlarge!
logicBRICKS-CC Plugged in the Industrial PC

Check out logiCRAFT-CC demo video clips!
