The logiCRAFT-CC-Base Companion Chip kit is an excellent entry level platform designed for customer looking to add FPGA companion chip to the preferred host processor.

This kit includes the same reference FPGAs, IP cores and software parts as the other two logiCRAFT-CC kits. However, it is not bound to specific host processor platform.

Kit users interested in Linux OS distributions delivered with the logiCRAFT-CC-Elite and the logiCRAFT-CC-Premier kits can get it from Xylon.
The provided reference FPGA designs, with evaluation versions of the logicBRICKS IP cores, can be used as bases for in-house developments and can save months of development time.  The PCIe Companion Chip Controller IP core and the USB firmware are provided to kit users free of charge. The pre-designed PCIe and USB interfaces allow designers to focus on the rest of the system and its differentiating functions.

Xylon provides a full set of Linux drivers for all logicBRICKS IP cores included in the reference FPGA designs, as well as demo software applications for Linux.

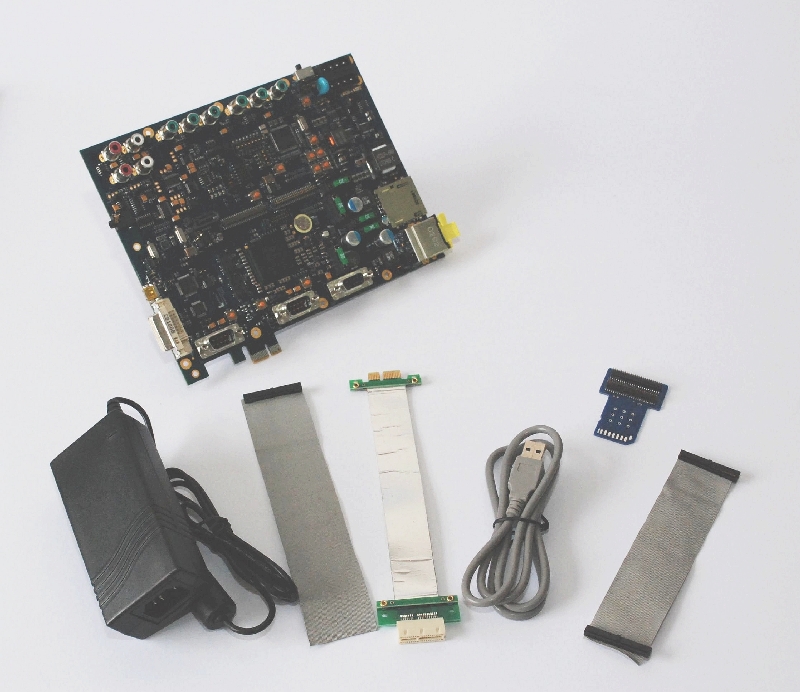

logiCRAFT-CC-Base kit includes:


Boards

- logiCRAFT-CC board including Xilinx Spartan-6 LX150T FPGA

Reference FPGA Designs

- PCIe design for Xilinx Spartan-6, compatible with the Xilinx Platform Studio and EDK tools
- USB** design for Xilinx Spartan-6, compatible with the Xilinx Platform Studio and EDK tools

** The reference designs users must have valid licenses for Xilinx development tools. The USB reference design includes evaluation version of Xilinx xps_usb_device2 IP core.

logicBRICKS IP cores

- logiPCIECTRL*** PCIe Companion Chip Controller (VHDL source code)
- logiWIN Versatile Video Input
- logiSDHC SD Card Host Controller
- logiUART Universal Asynchronous Receiver/Transmitter
- I2S_PLB IP core

*** Unless otherwise stated, Xylon provides the evaluation IP cores with the kit

Applications and Drivers

- Linux drivers for all logicBRICKS IP cores used in the provided reference FPGA designs
- Firmware for the Xilinx MicroBlazeâ„¢ CPU that handles USB communication
- Ubuntu Linux distributions available for the FTP
- Linux applications to demonstrate: video frame grabber for camera, SD memory card control, I2S audio control.

Read more about the provided demos and see the logiCRAFT-CC video gallery.

Documentation

- Hardware User's Manual
- logicBRICKS User's Manuals
- SW Manuals
- Schematics

Cabling and Adapters

- power supply
- PCIe extender cable
- USB cable
- SD extender cable
- 2x open-end parallel cable for the logiCRAFT-CC extender connector
