To enable early development and demonstrate the IP core before implementing in Xilinx® Zynq™-7000 EPP devices, Xylon has designed the logiGPU Graphics Demonstration Kit that combines the ARM® development kit with the Cortex™-A8 processor and the Xylon logiCRAFT-CC FPGA Companion Chip board with the Xilinx Spartan®-6 FPGA.
The logiGPU kit runs the Linux OS and OpenGL® ES 1.1 API, and emulates future implementations of the logi3D Graphics Processing Units (GPU) on the Xilinx Zynq-7000 EPP.
|
Click HERE to see the logiGPU kit's block diagram!
Xylon provides design services to customers
interested in developments based on the presented hardware and software
products.
|
logiGPU Graphics Demonstration Kit includes:
| |
Hardware

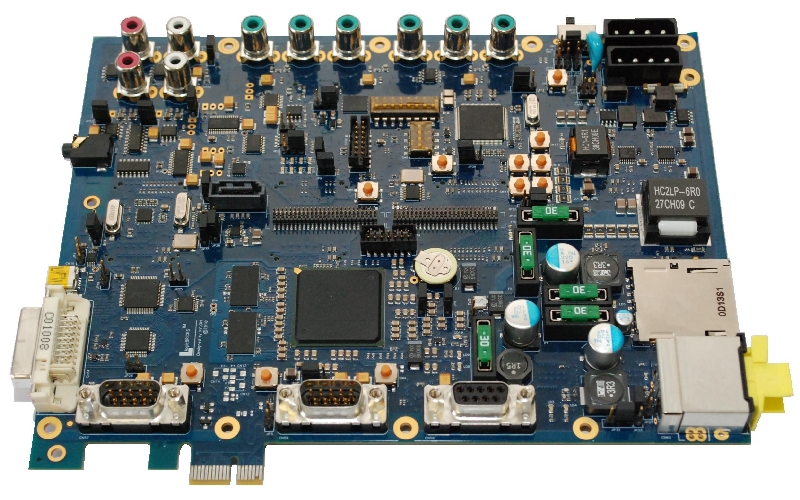

- Xylon logiCRAFT-CC FPGA Companion Chip board with the Xilinx Spartan-6 XC6SLX150T
- OMAP3530 ARM Development Kit with the ARM Cortex-A8 processor
- Add-on board for logiCRAFT-CC and Kit OMAP3530 interconnection
Reference
FPGA Designs
- 3D graphics accelerator FPGA design for Xilinx Spartan-6
logicBRICKS
IP cores
- GPMC-AXI4 Bridge IP Core
- logi3D Scalable 3D Graphics Accelerator
- logiCVC-ML Compact Multilayer Video Controller
- logiMEM_arb SDRAM Memory Controller and Arbiter for Xilinx Spartan-6
Applications and Drivers
- The Angstrom Linux OS distribution
- OpenGL® ES 1.1 library for the logi3D
- logi3D Linux driver
|
Product is based on a published Khronos specification,
and is expected to pass the Khronos Conformance Testing Process. Current
conformance status can be found at www.khronos.org/conformance.
