Quick Start - GPU for the TED inrevium Zynq-7000 AP SoC Card

logiREF-ZGPU-ZED reference design can be downloaded as a cross-platform Java JAR self-extracting installer. Please make sure that you have a copy of the JRE (Java Runtime Environment) version 6 or higher on your system to run Java applications and applets.

Double-click on the installer's icon to run the self-installing executable to unpack and install the reference design on your PC.

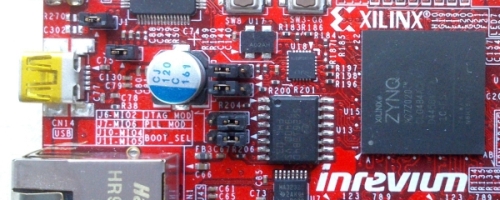

TED inrevium Zynq-7000 AP SoC extension card jumpers setting for SD card boot

Xylon provides Linux-based pre-compiled 3D graphics demo applications as an SD card image in the sd_card_image directory. If you want to run the prepared demos, copy the content of this directory to the root directory on the FAT32 formatted SD card.

For the most comfortable work with the precompiled Linux demos, please connect the keyboard to the card's USB connector. You can also control the demo through the serial port (115200 8N1).

Setting Up the TED inrevium Zynq-7000 AP SoC Card for Xylon's Precompiled Demos
  • Setup the board as shown on the above photo (J6 2-3, J7 2-3, J10 1-2 and J11 1-2)
  • Connect the keyboard to the USB connector, or PC with control terminal application through the serial cable (supplied with the kit)
  • Program the SD card with the image from the sd_card_image directory
  • Plug the card to the card connector
  • Power on the board and wait on the Linux OS to boot
Running 3D Demo Applications

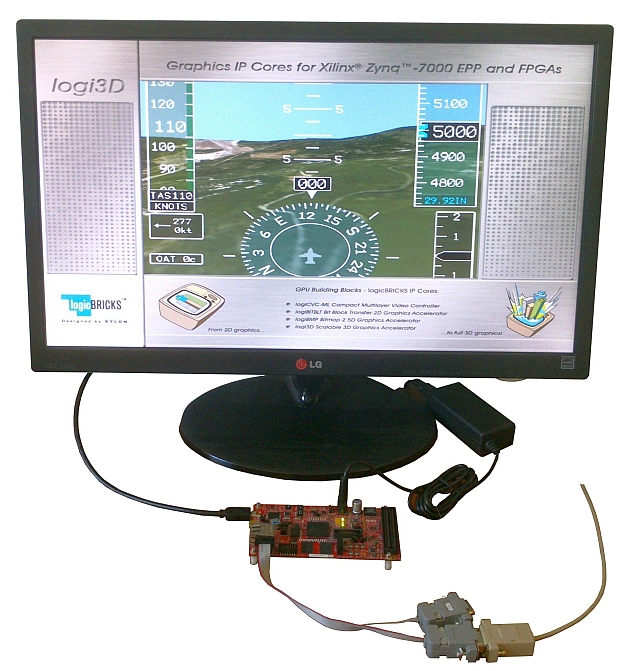

Full 3D graphics running on the TED inrevium Zynq-7000 AP SoC extension microcontroller card
Click Photo to Enlarge!
Please type the following commands in the screen console:

cd /mnt

./run3d.sh


Control demos by keys A or D (left-right), E (select), and Q (quit). In some demos you can also use keys W, X, R and F.

After each key you have to press ENTER, otherwise console doesn't send it.
