How to Get logicBRICKS Evaluation IP core License


Test our platforms

You must be a registered logicBRICKS user and logged in to the Xylon website using your logicBRICKS user name and password to get an access to evaluation logicBRICKS IP cores. Unregistered users will be re-directed to the User Login page - CLICK for registration instructions.

Go back to Downloads Navigation Page.

Step 1 (Click on Figures to get higher resolution images)

Logged in users get the "My logicBRICKS" tab in the main navigation menu. Click on it and you will be directed to your main web page for communication with Xylon logicBRICKS. Please select the "Request Eval IP Core" tab in the left menu.

My logicBRICKS Navigation Page

Step 1: My logicBRICKS Navigation Page
Step 2

Select the evaluation logicBRICKS IP core and click on "Obtain evaluation license key" link - see figure Step 2.a. If you are entitled to get the evaluation logicBRICKS IP core, you will immediately proceed to the Step 3 of the licensing process.

Selecting logicBRICKS IP Core for Licensing

Step 2.a: Selecting logicBRICKS IP Core for Licensing

If the logicBRICKS IP cores' list looks differently from the above figure (2.a), for example looks as the list presented by the figure bellow (2.b), please fill in and submit the request form (Figure 2.c) and allow us some time to process your request.

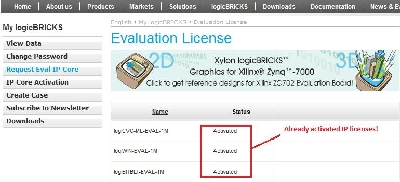

A list of already activated logicBRICKS IP Licenses

Step 2.b: A list of Already Activated logicBRICKS Licenses


License Request to Xylon Tech Support

Step 2.c: License Request to Xylon Tech Support
Step 3

logicBRICKS IP licenses are tied to your Ethernet MAC address or Sun Host ID, and can be used on a single working station only. Fill in this address (Figure Step 3.a) and click the "Request License Key" button. If you don't get the confirmation message (Figure Step 3.b), please contact Xylon technical support.

Providing workstation identification number
Step 3.a: Providing Workstation Identification Number

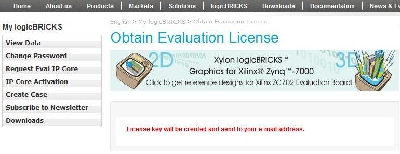

logicBRICKS Licensing - Confirmation Message
Step 3.b: Providing Workstation Identification Number
Step 4

You will gen an e-mail (Figure Step 4) with the license key (file) and full instructions for setting up the license key and downloading the selected logicBRICKS IP core. Please follow instructions received by this e-mail.

E-mail with logicBRICKS License and Download Instructions
Step 4: E-mail with logicBRICKS License and Download Instructions
