Design Description

The logiADAK-VDF Video Design Framework includes pre-verified logicBRICKS reference designs for video capture from Xylon cameras or the HDMI video input, and the display output under the Linux operating system.

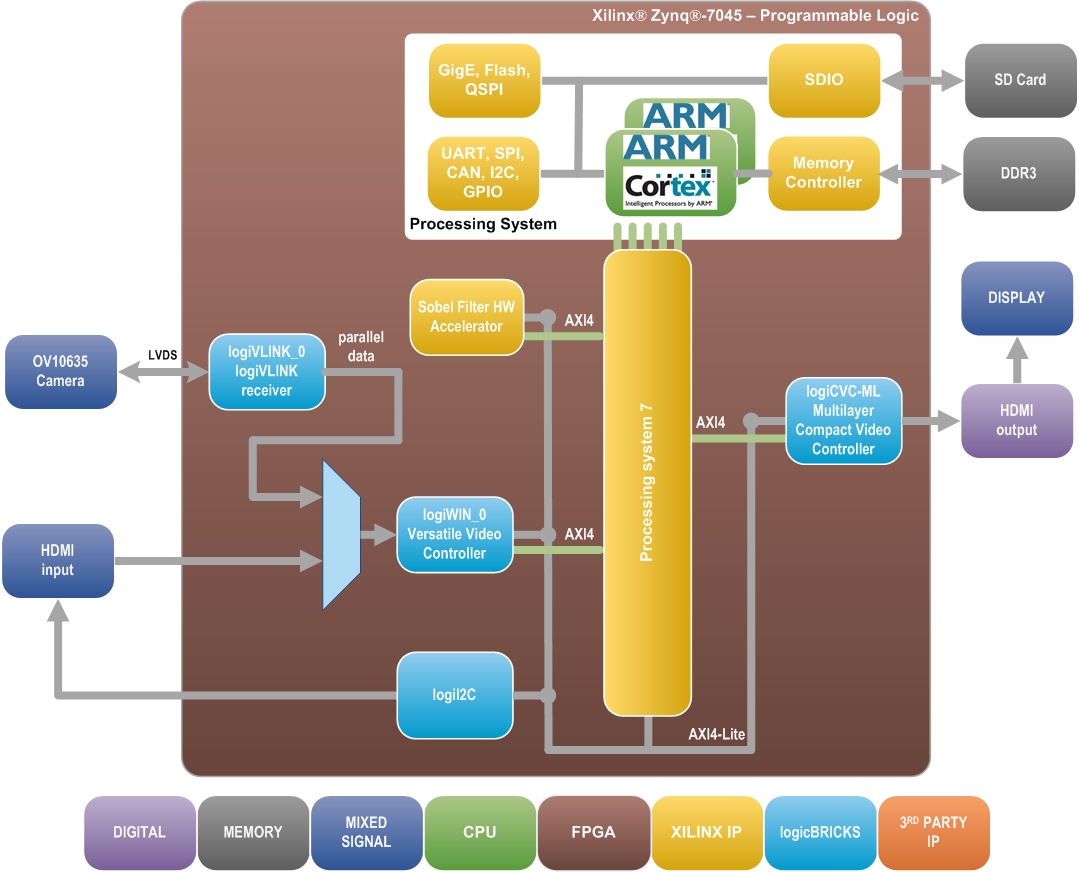

Zynq-7000 SoC CAM-HDMI design CAM-HDMI Design

The design implements a single video input, and the display output with the RGB overlay. The video input can be sourced from the attached Xylon video camera, or through the HDMI input. Video captured by the logiWIN frame grabber IP core is stored in the DDR3 memory, than processed by the inserted Sobel filter (SDSoC video processing example). The filtered video stored in the external memory is displayed by the logiCVC-ML display controller IP core.

In order to use this design framework with the logiADAK kit, the framework user needs to purchase the HDMI Input/Output FMC module from Avnet (Part Number: AES-FMC-HDMI-CAM-G). The logiVID-Z hardware platform includes this board.

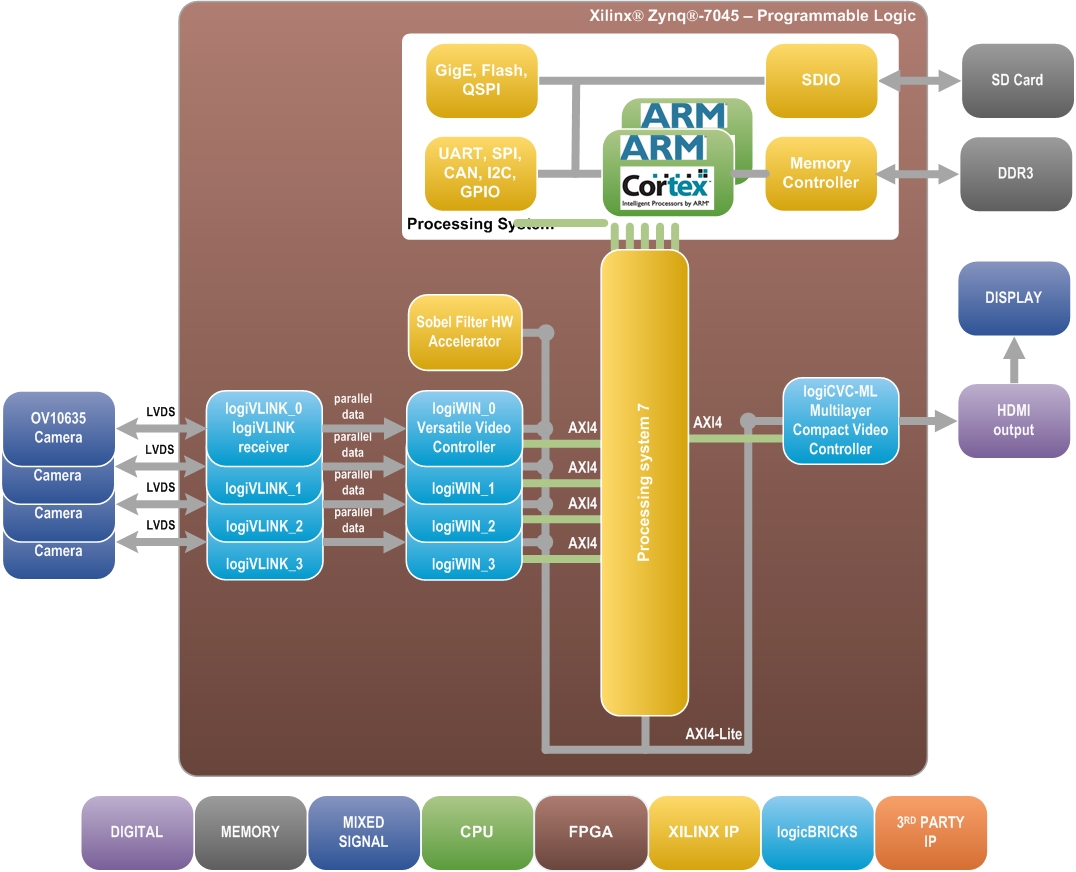

Zynq-7000 SoC FOUR-CAM design FOUR-CAM Design

This design implements four parallel video inputs from Xylon cameras and the display output with the RGB overlay. All video inputs are stored in the video memory, and by mean of the ončboard push buttons, the design user can select each of them, or stitched four cameras for the full screen display output.

Video inputs are controlled by the logiWIN Versatile Video Input IP cores, and the video output is displayed by the logiCVC-ML Compact Multilayer Video Controller IP core.

Users who do not have Xylon FMC board and cameras can evaluate the CAM-HDMI design with the Avnet HDMI Input/Output FMC board attached to the ZC706 Kit.

Read More:

- Design Introduction
- Design Deliverables
- Quick Start with the Reference Designs
