User Interface

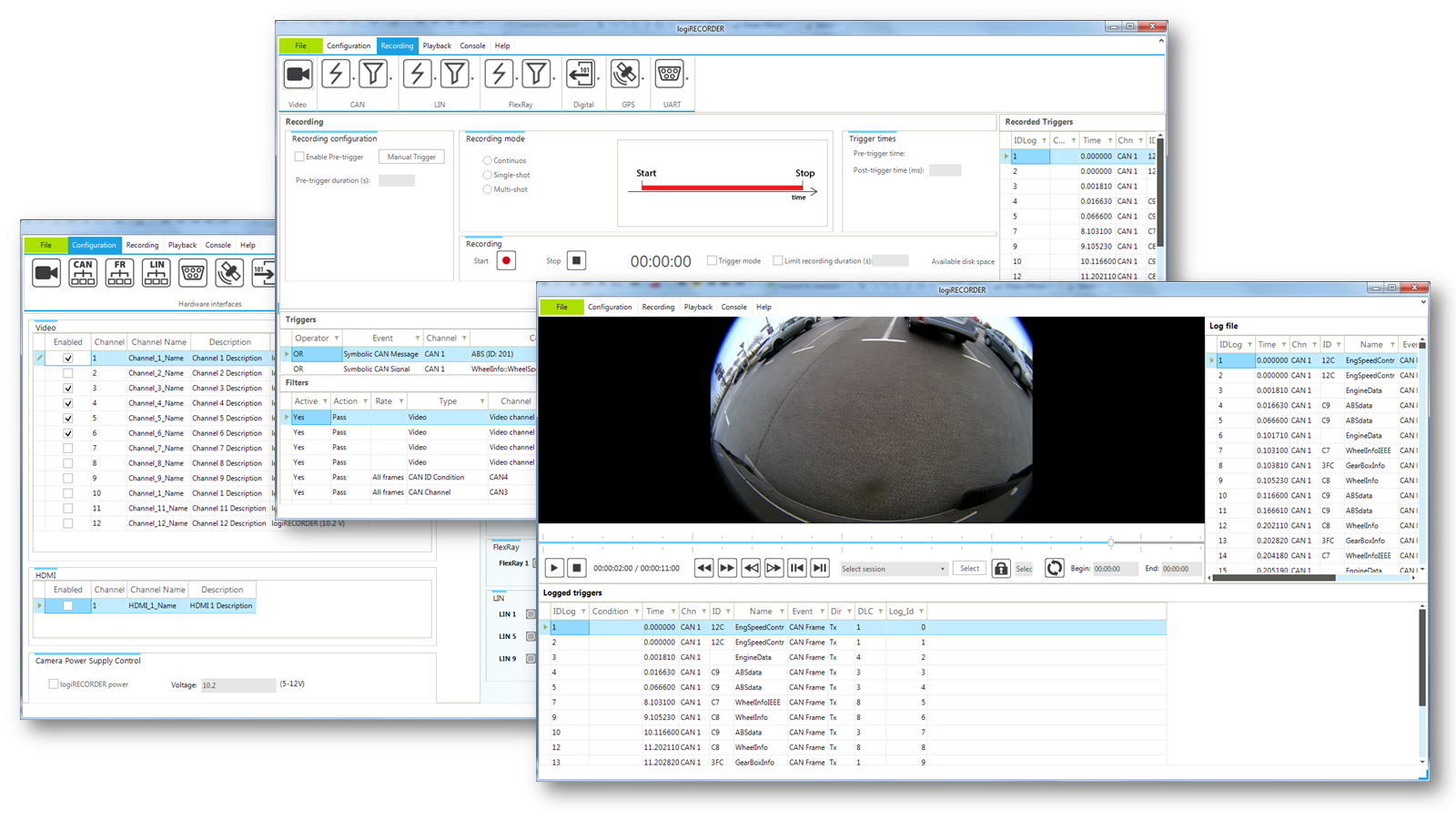

The logiRECORDER dashboard PC application enables centralized logger control, data analysis and event-triggered recordings. Triggers and filters can be setup as signals and messages from vehicle XML DBC, LDF and FIBEX databases. The dashboard can be used for video inputs selection for recording, switching between display views, continuous and event-triggered recording modes, controlling video playback, power supply (graceful shutdown) setups, etc. Selected logiRECORDER views can be displayed in the dashboard application and on an optional external monitor attached to the logger. The dashboard enables remote control through WiFi and 4G mobile networks.

The back side with video and network connectors
