Quick Start - GPU for the ZedBoard

logiREF-ZGPU-ZED reference design can be downloaded as a cross-platform Java JAR self-extracting installer. Please make sure that you have a copy of the JRE (Java Runtime Environment) version 6 or higher on your system to run Java applications and applets.

Double-click on the installer's icon to run the self-installing executable to unpack and install the reference design on your PC.
ZedBoard setup that enables quick run of Xylon logicBRICKS Graphics Engine demos from the SD card
Click Photo to Enlarge!
After installing the logiREF-ZGPU-ZED reference design for the ZedBoard from Avnet Electronics Marketing, please use the start.html file located in the installation root directory as a jump-start navigation page for exploring the reference design.

If you want to quickly run the precompiled graphics demo applications on your ZedBoard kit, please copy contents of the software/ready-for-download/linux_sd directory to the root directory on the FAT32 formatted SD card, plug the SD card, connect the PC monitor and power-on the setup board.

For the most comfortable work with the precompiled Linux demos, Xylon recommends use of a keyboard and a mouse connected through an USB hub (can be passive) to the ZedBoard USB OTG connector (J13). You can also use reference design with no keyboard and run the majority of the provided demos by using on-board push-buttons.
CLICK to open the User's Manual!

Setting Up the ZedBoard for Xylon's Precompiled Demos
  • Setup the board as shown on the above photo
  • Connect power supply; optionally mouse and keyboard to the USB OTG connector
  • Program the SD card as explained above
  • Plug the card to J12 card connector
  • Power on the board and wait on the Linux OS to boot
   Jumper Name
Setting
   JP7  MODE0
 GND
   JP8  MODE1  GND
   JP9  MODE2  3V3
   JP10  MODE3  3V3
   JP11  MODE4  GND
   JP6  MIO0  Short
   JP2  VBUS 5V EN
 Short

Running Demo Applications

When you start the precompiled Xylon reference design, your ZedBoard will boot up to the graphical menu. Please use on-board push-buttons to navigate through the menu and select different demos.
For information about keyboard/mouse controls, please check the User's Manual (Chapter 7).

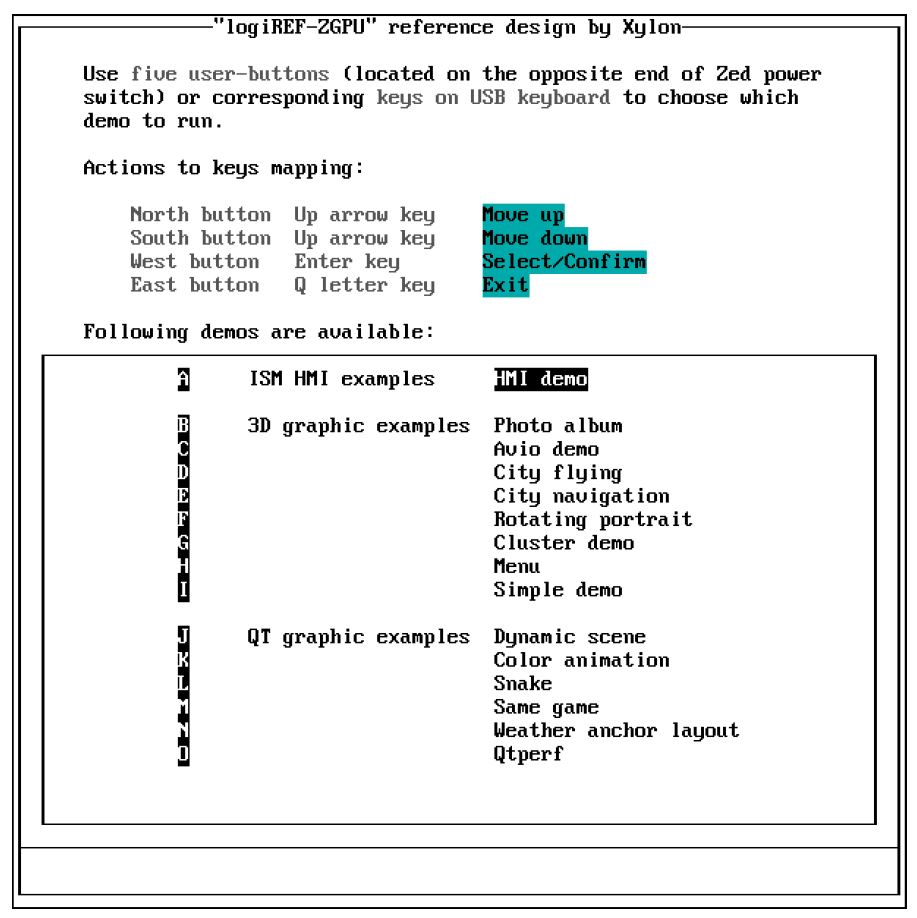

Xylon Reference Design for the ZedBoard - Graphic Boot-Up Menue
