What You Need To Run the Demo?

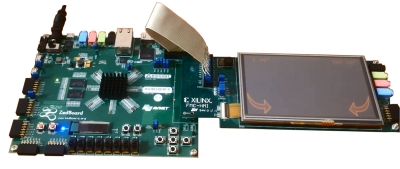

Xylon Video Rotation - HW Setup ZedBoard + HMI FMC
logiREF-VROT-FMC - Real-time low latency video rotation demo HW setup

What's Needed?

Hardware

- ZedBoard™ Development Kit from Avnet Electronics Marketing (Rev C*)
- FMC-HMI Human-Machine Interface Board from Digilent® (Rev B*)
- SD card

- Optional: USB Micro-B cable, USB hub, mouse and keyboard
- Optional: MINI USB cable for debug UART
- Optional: Xilinx JTAG Platform Cable USB II

* Xylon has developed and verified the logiREF-VROT-FMC design with this HW setup!


Software

Optional: Xilinx ISE® Design Suite 14.5 Embedded or System Edition
