THIS PRODUCT IS OBSOLETE!

Xylon recommends the new logiRECORDER 3.0 Automotive Video Data Logger that offers an improved features set and support for versatile video and network interfaces.

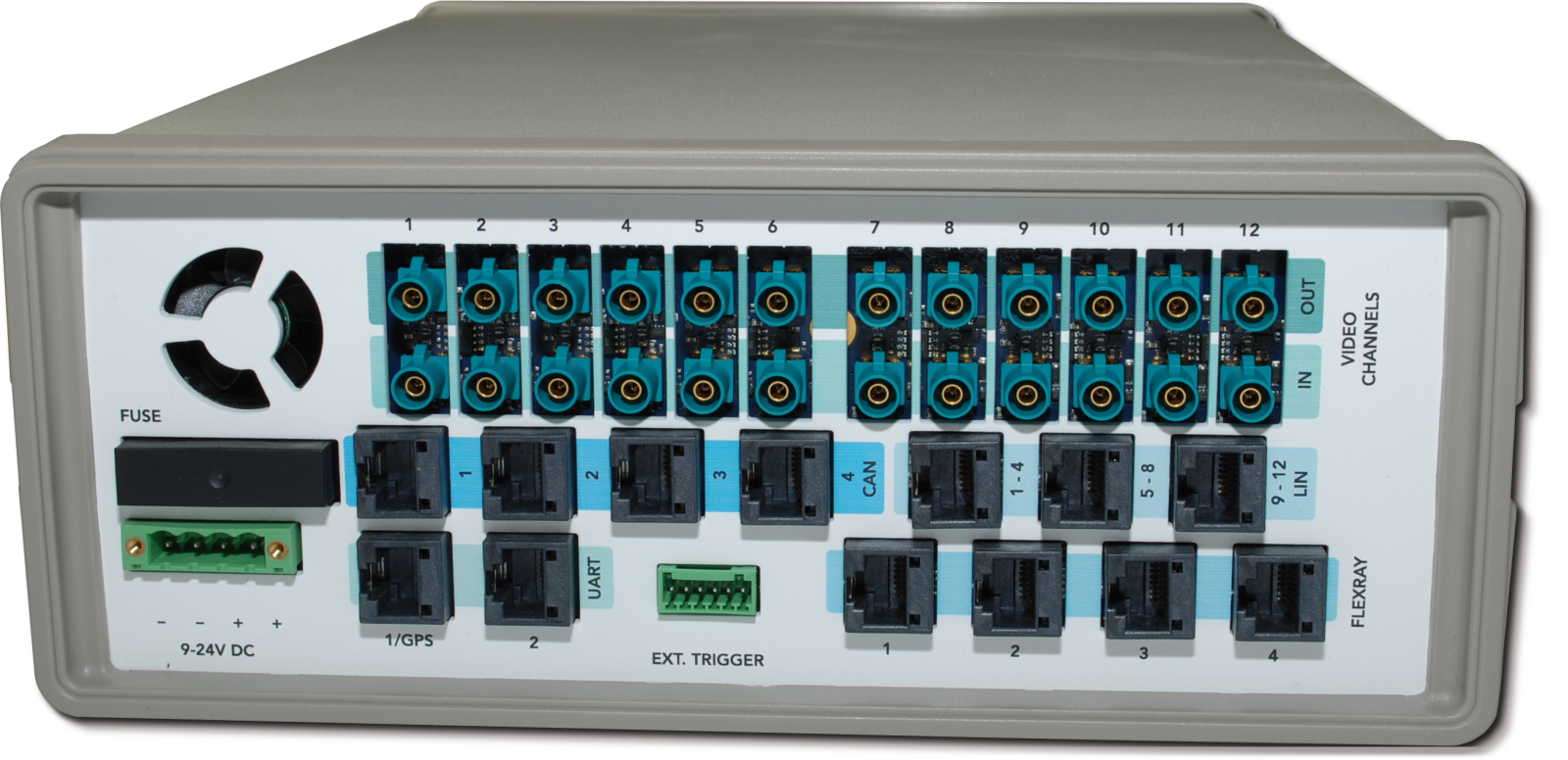

logiRECORDER-20 Back Side - Click Image to Enlarge!

Video Inputs (from cameras)

    - x12 TI® FPD Link-III¹ (914 RX)
    - x1 HDMI auxiliary input

Video outputs (to ECUs)

    - x12 TI FPD-Link III (913 TX)
    - x1 HDMI to control display

Aggregate 1.5 GB/s throughput²

    - x12 1MP@30fps YUV 16-bit
    - x42MP@60fps YUV 16-bit...

Networks & Interfaces

    - x4 CAN
    - x2 FlexRay
    - x12 Lin
    - x1 GPS
    - x1 UART
    - x2 DIG IN
    - x1 DIG OUT

File Formats

    - video uncompressed .AVI
    - network data in industry standard ASC
    - supports vehicle databases:
      - XML DBC for CAN
      - LDF for LIN
      - FIBEX for FlexRay

Storage Media

    - x4 SSD SATA (up to 8 TB combined³)
    - portable and FAT32 formatted
    - min. 3 hours of the uncompressed video⁴

General

    - 12 VDC nominal in the 9-24 VDC range
    - 100 W power consumption
    - central timestamp 1us tick
    - average timestamp deviation < 10us
    - microcontroller controlled power supply
    - graceful shutdown, etc.
    - actively cooled aluminum housing

¹ Xylon will support other video interfaces. For more info, please contact us.
² Such data throughput enables simultaneous work with x20 1MP@30fps uncompressed video channels!
3 Standard logger configuration includes x4 512 MB SSDs. For SSDs with higher storage capacity, please contact us.
⁴ Assuming 8 TB storage capacity and parallel recording of x12 1MP 1280x800@30fps video camera inputs!
