Key Features
- FPGA Mezzanine Card (FMC+) with support for 12x video cameras
- Compatible with GMSL3 and GMSL2 serial link from Analog Devices
- Integrates 6x MAX96726A GMSL3/2 deserializers (3/6/12 Gbps)
- 5x 2-lane C-PHY 10.26Gbp/Lane MIPI v2.1
- Supports RAW8/10/12/14/16/20, RGB565/666/888,YUV422 8-/10-Bit, User-Defined and Generic Long-Packet Data Types
- Enables hardware synchronization of all video cameras
- Compatible with AMD® Versal™ AI Edge Series VEK385 Evaluation kit and other evaluation kits utilizing HSPC FMC connectors
- Incorporates HSPC FMC connector (ASP-184330-01)
- Board dimensions 85mm x 69mm
- MOQ = 1
This product enables connection of 12 video cameras to the AMD VEK385 evaluation kit. Please ensure that you review AMD documentation for potential limitations related to your specific SoC and board configuration.
Description

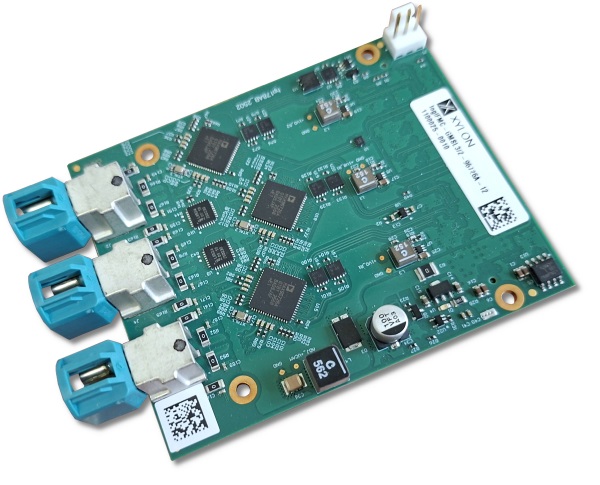

Xylon's logiFMC-GMSL3/2-96726A-12C GMSL3/2 12-Channel GMSL3/2 FMC+ mezzanine card supports Gigabit Multimedia Serial Link (GMSL3, GMSL2) from Analog Devices, which is one of the most popular automotive high-speed serial links for in-vehicle video, audio, and communication data stream transfer. The card is primarily designed to enable quick prototyping and evaluation of industrial, medical, defense, automotive and similar video and vision AI applications. It enables easy interfacing of up to twelve video cameras to hardware boards with the AMD FPGA and adaptive SoC based video and vision processors.
The logiFMC+ GMSL3/2 mezzanine card integrates three (3) MAX96726A deserializer chips (max. 12 Gbps per GMSL3 link; max. 6 Gbps per GMSL2 link). Each deserializer supports four GMSL3/2 inputs converting them into MIPI Camera Serial Interface 2-Lane C-PHY output.
The logiFMC+ GMSL3/2 FMC+ mezzanine card is compatible, and can support all 12 video channels, with the existing AMD VEK385 evaluation platform that features FMC+ board-to-board connector. It may also be used with the other FMC+ compatible AMD and third-party evaluation platforms. In this case, however, the exact number of available channels may be smaller and depends on carrier board pinout and capabilities.
